Interactive Master Plans for UAE Residential Developments: Scope the Sales Product
A practical UAE developer guide to scoping an interactive master plan across buildings, floors, units, inventory, CRM handoff and governance.
The short answer
An interactive master plan should be scoped as a residential sales product, not as a panoramic render with hotspots. It needs a reliable hierarchy from development to building, floor and unit; clear rules for availability and price; useful comparison; a deliberate handoff to the sales team; and an operating owner for every field that can change. The first release should help a buyer make one confident next decision while giving the developer measurable, qualified context.

Our take
Axiom Forge starts with the buyer decision and the developer’s operating model. Visual fidelity matters, but a beautiful model becomes commercially useful only when unit identity, inventory ownership, content approval and CRM handoff are designed together. Test these relationships with a limited, clearly labelled sample before commissioning every view.
Three choices to settle first
DECISION PATH
Choose the shortest useful journey
Decide whether buyers begin from a district, a building facade, a floor or a known unit type. The answer controls navigation and modelling scope.
SOURCE OF TRUTH
Name the owner of changing facts
Availability, price, area, status and incentives need a declared system, update frequency and fallback when that system is unavailable.
SALES HANDOFF
Preserve the selected context
A qualified enquiry should arrive with development, building, floor, unit, campaign and buyer intent rather than a context-free phone number.
PRODUCT SCOPING DIAGRAM · A BUYER DECISION AND AN OPERATING OWNER AT EACH LEVEL
AXIOM FORGE / PRODUCT SCOPING
From master plan to a useful enquiry
Scope one decision path before expanding the visual model.
- Step 1DEVELOPMENTProject contextApproved assets
- Step 2BUILDINGChoose a buildingStable identity
- Step 3FLOOROrient the buyerNavigation state
- Step 4UNITCompare optionsInventory owner
- Step 5ENQUIRYKeep the contextCRM handoff
- PRESENTATION
- Navigation explains the choice.
- OPERATIONS
- Approved records define the truth.
Illustrative workflow. Not a client case, certification or construction document.
In this article6 sections · 8 min
The phrase interactive master plan can describe very different products. One developer may need a fast visual route from community to available apartment. Another may need villa-plot selection, investor comparison and sales-agent collaboration. A third may simply need a premium presentation for a launch suite. Treating those briefs as the same product creates unnecessary modelling work and leaves the important sales decisions unresolved.
Start with a single sentence that names the user, decision and business response. For example: an overseas investor compares buildings, shortlists two units and requests a call from the project sales team with both choices attached. That statement is more useful than a feature list because it exposes what data, interface states and integrations must survive from the first view to the handoff.
The product boundary should also say what the experience will not do. It may show unit types without live stock, accept an expression of interest rather than a reservation, or use representative interiors rather than a model of every apartment. Explicit boundaries prevent the visual layer from implying precision or availability that the operating system cannot support.
- Primary user and market: end-user, investor, broker or sales consultant
- Entry point: community, building, floor, unit type or campaign landing page
- Next decision: compare, shortlist, enquire, book a viewing or reserve
- Commercial response: CRM assignment, call-back, appointment or sales-suite follow-up
- Excluded claims: live availability, exact views or finishes unless the source can support them
A dependable experience needs stable identifiers beneath the labels buyers see. Development, phase, building, floor, stack, unit and unit type should not be inferred from marketing names. Those names change; the identifiers must survive campaign edits, language changes and integration work. Each unit record should point to its parent entities so a selection never becomes detached from the building and floor that give it meaning.
Separate descriptive content from volatile commercial facts. Architecture narrative, amenity copy and a representative unit-type plan can live in a managed editorial layer. Availability, price, reservation state and incentive expiry belong to an inventory contract with timestamps and ownership. If live synchronization is not ready, the interface should say what is current, what is indicative and what must be confirmed by the sales team.
Dubai Land Department’s Dubai REST description shows the breadth of project information buyers can encounter in an official digital service, including completion progress, project images and escrow information. Its Project Status service also exposes structured project and developer fields. A private developer platform should not imply official status or integration merely because similar fields exist, but it should adopt the same discipline: important facts need accountable sources.
| Object | Stable data | Changing data | Operational owner |
|---|---|---|---|
| Development | ID, location, phases | Launch status, content | Developer marketing |
| Building | ID, position, orientation | Release status | Development operations |
| Floor | ID, level, geometry reference | Accessible unit count | Inventory operations |
| Unit | ID, stack, type, area basis | Availability, price, hold state | Sales operations |
| Enquiry | Selection IDs, language, source | Owner, stage, response time | CRM / sales leadership |

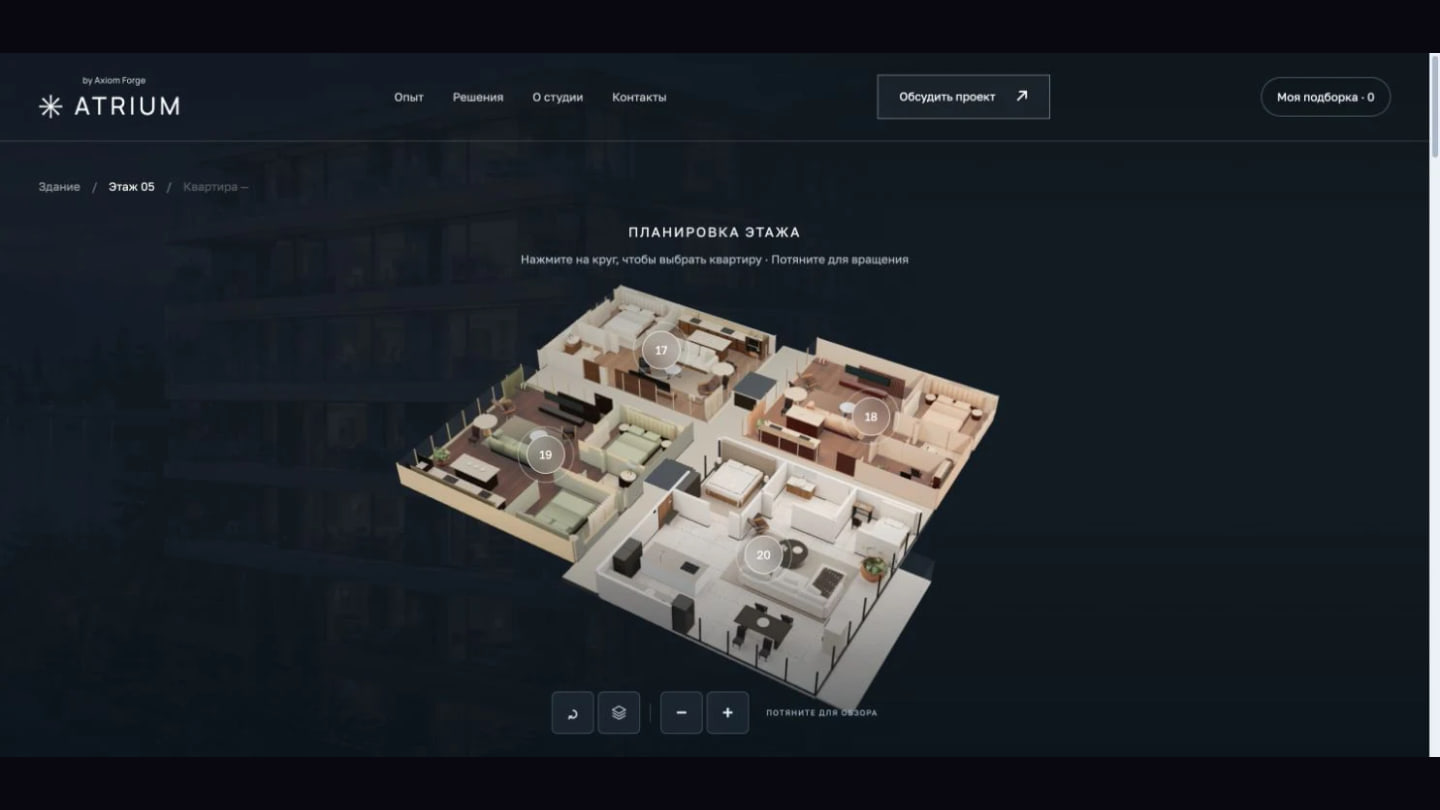

A useful discovery prototype can cover one building, one floor and a small approved set of units. Let a reviewer move through that hierarchy, return to the floor and retain the selected unit. This is a proposed acceptance exercise, not a claim about a completed client deployment.
Define what that exercise does not prove. A working interaction does not establish geodetic accuracy, live inventory quality or commercial results. Those distinctions belong in the proposal because a sales prototype, a marketing visualization and an operational property platform have different acceptance criteria.
For a real commission, prototype the hardest transition early. If the commercial risk is whether buyers understand the facade-to-floor movement, test that before modelling every interior. If the risk is inventory confidence, connect a narrow sample feed before producing cinematic motion. A prototype earns its place by retiring a decision, not by accumulating screens.
ACCEPTANCE EXERCISE
Test the building-to-floor transition with a representative slice.
Suggested acceptance exercise with a limited approved dataset. A successful prototype does not establish launch readiness or measured sales results.
AXIOM FORGE / PRODUCT SCOPING
A small slice, with explicit acceptance
Proposed discovery exercise — not evidence of a completed deployment.
- Step 1CONTEXTOne buildingApproved sample
- Step 2MOVEMENTOne floorClear back route
- Step 3IDENTITYA few unitsStable unit IDs
- Step 4RECOVERYReturn safelyRetain selection
- Step 5BOUNDARYReview scopeNot launch proof
- PROTOTYPE ACCEPTANCE
- Does the interaction answer the question?
- LAUNCH ACCEPTANCE
- Data, monitoring, roles and support are separate.
Illustrative workflow. Not a client case, certification or construction document.
A property platform can create accidental claims through presentation alone. A green unit, a price beside a floor plan or an unqualified view image can look current even when the underlying information is conceptual or delayed. Establish a small vocabulary of truth states such as available, on request, representative, indicative and last confirmed, then define who can apply each state and when it expires.
Dubai Land Department’s Real Estate Ad Permit service includes electronic advertisements and real estate promotion platforms. The exact permit, content and workflow requirements must be confirmed with the relevant authority and qualified advisers for the campaign in question. Product teams should still make room for approved references, review status and asset provenance rather than trying to add compliance notes after the interface is complete.
Lead data deserves equal care. The UAE’s official portal describes the federal Personal Data Protection Law as setting controls for processing personal data and obligations for organisations that hold it. The practical product response is data minimisation: collect only what changes the sales response, explain the purpose and avoid copying personal details into uncontrolled spreadsheets or chat threads.
- Show when availability or price was last confirmed
- Mark representative imagery and indicative dimensions in context
- Store permit and approval references with the campaign asset
- Restrict who can publish commercial changes
- Send personal data only to approved systems and roles
The highest-value output of the experience is not a button click. It is a lead record that preserves the buyer’s choices and reaches the right person. The CRM payload should include the stable IDs behind the selected unit, the public labels shown to the buyer, language, campaign source, device context and declared intent. If a buyer shortlists several options, keep the set rather than overwriting it with the final click.
Routing rules need commercial ownership. A waterfront building, Arabic-speaking buyer or broker-originated enquiry may require a different team. The interface should acknowledge what happens next and the operation should track whether the promise was met. Measure accepted leads, response time, qualified conversations, viewings and reservations where those outcomes are available; do not optimise the product around raw form submissions alone.
Plan failure states as part of the journey. When inventory cannot be confirmed, preserve the buyer’s selection and offer a transparent request for verification. When the CRM is unavailable, queue the enquiry safely and alert an owner. A polished animation cannot compensate for a lead that vanishes between the browser and the sales desk.
A credible first phase should cover one representative slice end to end: one development, a limited set of buildings or floors, real unit identifiers, a controlled availability source and a working sales handoff. That slice reveals content gaps, model weight, mobile interaction problems and operational exceptions while they are still affordable to change.
Phase two can widen inventory, introduce richer comparison, expand language coverage and add representative walkthroughs where they improve decisions. Reservation, payment and authenticated investor services should remain separate scope decisions because they introduce identity, security, financial and support obligations beyond a lead-generation product.
Ask vendors to price the data and operating work explicitly. A proposal should state modelling assumptions, supported devices, performance budget, accessibility approach, content responsibilities, inventory update model, CRM contract, analytics events and acceptance tests. Axiom Forge can turn those constraints into a scoped brief before design and engineering begin. Send the project context through the full brief or write to hello@axiomforge.am if your development needs the same type of interactive sales journey.
| Phase | What is proven | What is deliberately deferred |
|---|---|---|
| Decision prototype | Navigation and buyer comprehension | Full catalogue and production integrations |
| Operational slice | Real identifiers, sample inventory, CRM handoff | All developments and unit interiors |
| Launch product | Governed catalogue, analytics, responsive experience | Reservation or owner portal unless scoped |
| Measured expansion | Additional inventory and proven journeys | Features without an observed user need |
Discuss your project with the founder
Is an interactive master plan the same as a 3D property render?
No. A render communicates a visual concept. An interactive master plan also needs navigation logic, stable property identities, content and inventory rules, sales handoff, analytics and operating ownership. A project can use rendered assets inside the product without treating the assets as the product itself.
Does every unit need a full 3D interior walkthrough?
Usually not. Representative unit-type experiences may answer the buyer’s decision more efficiently. Build a full interior only when it changes comprehension or qualification, and label representative finishes, views and dimensions clearly.
Can the platform show live availability and prices?
Yes, when there is a reliable source, update contract, timestamp, permissions and fallback. If those controls are absent, show a controlled status such as on request and let the sales team confirm the current commercial position.
How should a UAE developer start this project with Axiom Forge?
Share one representative development, the current inventory source, languages, sales workflow and target launch window through the Axiom Forge brief. You can also email hello@axiomforge.am. The first output should be a decision map and scoped operational slice, not an open-ended list of visual effects.
