From Floor Plans to Structured Development Data: A Readiness Guide for Developers
A developer readiness guide for turning floor plans into governed data that can support 3D sales tools, inventory, estimates and controlled document workflows.
The short answer
Floor-plan digitisation is not complete when a drawing becomes a clean image or a 3D model. A reusable development dataset needs stable object identities, geometry provenance, units and tolerances, explicit relationships, version history, validation status and ownership. The right output depends on the decision it must support: a sales selector, quantity estimate, structural model and construction document do not require the same authority. Keep those uses connected, but never collapse their acceptance standards.

Our take
Axiom Forge treats the plan as an input to a traceable information flow, not as an unquestionable source. Define the relationship between plan, model, quantities and documentation before choosing an automation tool. Prototype outputs must stay distinct from professionally reviewed or issued information; software does not transfer engineering responsibility.
Three choices to settle first
INTENDED USE
Name the decision the data must support
Sales selection, quantity planning, coordination and construction each require different precision, review and professional accountability.
PROVENANCE
Keep every value traceable to its source
Record source document, revision, extraction method, units, assumptions, reviewer and status so derived outputs can be challenged safely.
EXCHANGE
Define the smallest useful data contract
Specify objects, properties, relationships and validation rules before choosing file formats or promising interoperability.
INFORMATION FLOW · SOURCE REVISIONS AND REVIEW STATUS TRAVEL WITH EACH OUTPUT
AXIOM FORGE / PRODUCT SCOPING
A traceable path from plan to output
The source revision and review status must remain visible at every stage.
- Step 1SOURCEPlan + revisionProvenance
- Step 2MODELObjects + rulesStructured IDs
- Step 3DERIVATIONQuantitiesAssumptions
- Step 4REVIEWExpert validationAuthority
- Step 5OUTPUTDocumentsIssued status
- BEFORE REVIEW
- Draft information — not for construction.
- AFTER REVIEW
- Use only within the authorised purpose and scope.
Illustrative workflow. Not a client case, certification or construction document.
In this article7 sections · 8 min
The same floor plan can support a marketing diagram, a unit catalogue, a quantity estimate or part of an engineering workflow, but it cannot automatically carry the same authority into each use. A sales selector may tolerate simplified walls and representative furniture while requiring exact unit identities. A bill of materials needs component definitions and measurement rules. Construction decisions require qualified professional review and controlled documents.
Write an intended-use statement before extraction begins. It should name the decisions the dataset may support, the outputs it may produce, the source documents in scope and the decisions it may not support. This prevents a model created for communication from being reused later as though it were verified engineering information.
Uncertainty should be represented rather than hidden. Missing dimensions, ambiguous wall types and conflicting revisions are data states. Mark them, route them to an owner and prevent downstream outputs from silently treating them as confirmed. A clean 3D view is not evidence that the underlying plan was complete.
- Permitted uses and prohibited uses
- Source drawings, revision dates and responsible issuer
- Required units, tolerances and area definitions
- Professional reviewer and approval state
- Behaviour when a value is missing, ambiguous or superseded
A useful data model represents objects, not just pixels and coordinates. A project contains buildings; buildings contain levels; levels contain spaces and elements; sales units relate to spaces and unit types; components have properties, quantities and source references. Stable identifiers allow a corrected geometry file to remain connected to inventory, estimates, comments and documents.
Names should be display attributes rather than keys. Marketing may rename a residence, Arabic and English labels may differ, and a level may be displayed differently to buyers and engineers. Preserve the stable identity underneath and track aliases. Relationships should also be explicit: a window belongs to an opening and a host wall, a unit contains spaces, and a quantity is derived from a defined method and model revision.
buildingSMART describes IFC as a standardized, vendor-neutral digital description of the built environment, including identities, attributes and relationships. IFC can be an important exchange option, but selecting the format does not define the delivery requirement. Teams still need to agree which objects and properties are expected, for which workflow, and how correctness will be checked.
| Layer | Examples | Required traceability |
|---|---|---|
| Source | Plan, schedule, specification, revision | Issuer, date, file and page |
| Spatial | Project, building, level, zone, space | Stable ID and parent relationship |
| Product | Unit, unit type, component, assembly | Classification and approved properties |
| Derived | Area, quantity, estimate line, status | Method, model revision and timestamp |
| Evidence | Check, issue, review, approval | Owner, outcome and immutable history |
Digitisation typically combines direct extraction, human interpretation and calculated values. Those routes should not look identical in the resulting dataset. A dimension read from a signed drawing, a wall type selected by an operator and a quantity calculated from geometry need separate provenance. That separation lets reviewers focus on assumptions rather than rechecking every confirmed value.
Keep source and derived data apart. The source record remains an immutable reference to what was received. Corrections and normalized values are new records with reasons and owners. When a later drawing supersedes the plan, the team can identify which models, estimates, visuals and documents depend on the changed information.
Version history needs more than a filename suffix. Record when a dataset was created, which source revision it used, which ruleset ran, who reviewed exceptions and what outputs were generated. That lineage is the difference between repeatable processing and an attractive model whose origin cannot be explained.
A workflow prototype can test how plan inputs, model states, quantities and documents remain connected. Label unvalidated outputs NOT FOR CONSTRUCTION, keep their source revision visible and identify which professional must review them before any higher-authority use.
That boundary is substantive. A prototype does not replace an architect or engineer and does not prove that generated quantities or documents are suitable for procurement, permitting or site work. A production implementation needs defined engineering rules, qualified review, controlled change management, applicable jurisdiction-specific requirements and evidence from representative real projects.
The useful lesson for residential developers is not that one interface can automate professional responsibility. It is that a well-designed system can make sources, assumptions, derived outputs and review states visible. That traceability can reduce avoidable re-entry and make expert validation more focused, while the expert remains accountable for the decisions that require professional judgement.

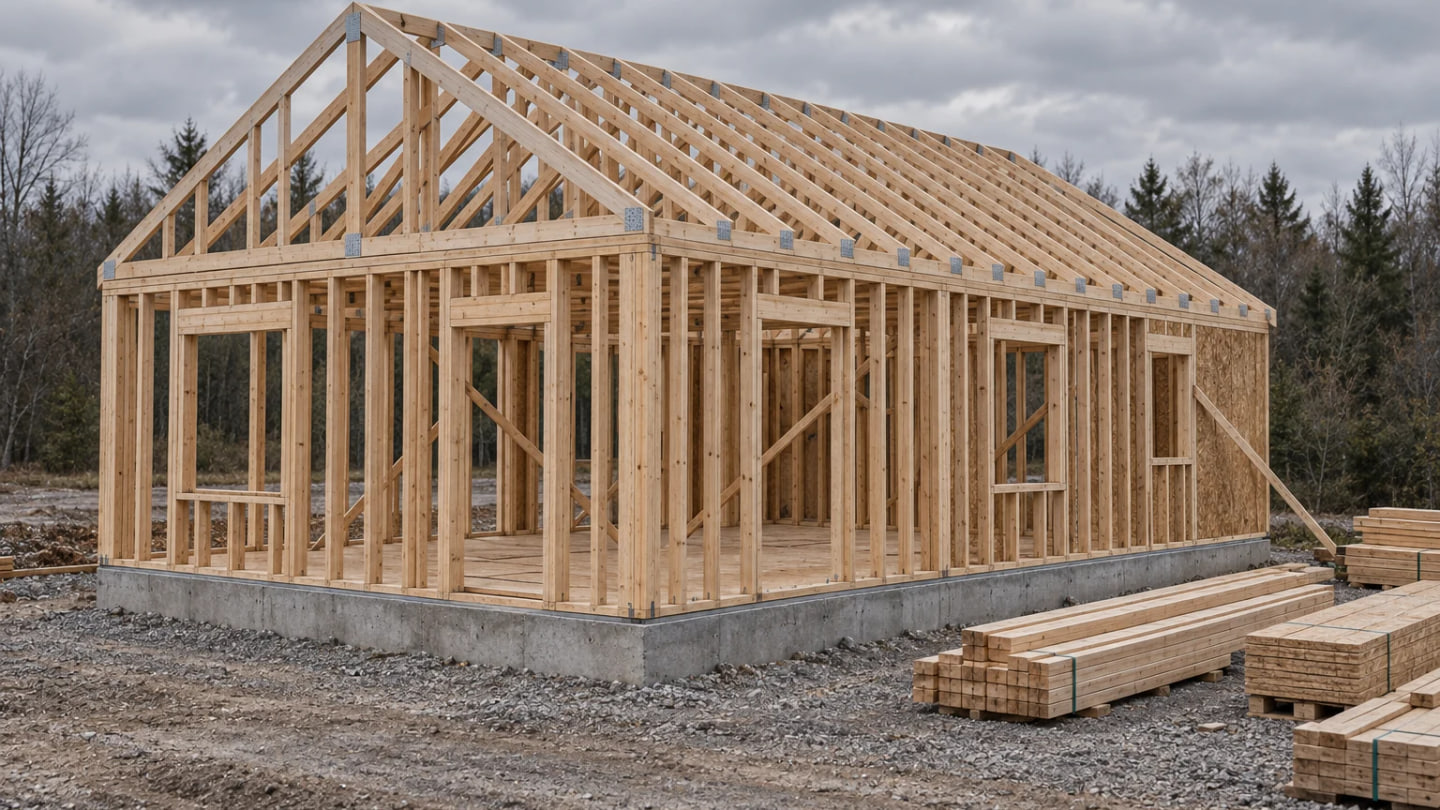

VALIDATION BOUNDARY / 01
A model becomes usable only after the right acceptance gate.
A proposed validation flow, not proof of certification. Draft model outputs remain NOT FOR CONSTRUCTION; engineering and issued outputs require qualified professional validation.
AXIOM FORGE / PRODUCT SCOPING
Review gates are part of the product
Automation does not transfer professional engineering responsibility.
- Step 1DRAFTDerived outputNot for construction
- Step 2CHECKTrace the inputsUnits and revision
- Step 3REVIEWQualified ownerApplicable rules
- Step 4APPROVERecord the decisionControlled change
- Step 5ISSUEAuthorised useScope + status
- PRODUCT DESIGN
- Make assumptions, sources and status inspectable.
- PROFESSIONAL AUTHORITY
- Approval belongs to a qualified accountable reviewer.
Illustrative workflow. Not a client case, certification or construction document.
Different outputs need different gates. A unit-selection experience may require an approved unit identity, plan orientation, area label and representative-image disclaimer. A quantity estimate needs measurement rules, component mapping, wastage assumptions and reconciliation. A drawing or engineering document needs professional review and controlled issue status. Passing one gate must never imply that the others passed.
buildingSMART’s Information Delivery Specification standard is designed to express information requirements in a computer-interpretable form and support automatic compliance checking of IFC models. Automated checks are valuable for presence, format, classification and permitted values, but they do not prove that a design is safe or correct. Use machine checks to surface issues and reserve professional acceptance for the decisions that require it.
Build a visible status model such as draft, extracted, inferred, checked, approved for a named use and superseded. Permissions should follow the state. A marketing editor may update copy without approving structural data; an estimator may review quantities without publishing inventory; a qualified professional may approve a controlled output without granting blanket approval to every derivative.
| Output | Automated checks | Human acceptance |
|---|---|---|
| Sales unit record | Required fields, IDs, area format | Marketing and inventory approval |
| 3D sales experience | Links, scene references, mobile fallbacks | Product, brand and compliance review |
| Quantity estimate | Units, formulas, mapped components | Estimator review and reconciliation |
| Structural model | Schema, connectivity and rule checks | Qualified engineering validation |
| Issued document | Revision, completeness and signatures | Controlled professional approval |
Residential sales tools benefit from structured project geometry and identities, but they should consume an approved publication layer rather than a live authoring model without controls. The publication layer can expose building, floor, unit type, orientation, approved areas and selected assets while withholding internal notes, personal data and unapproved engineering changes.
Likewise, sales outcomes should not write directly into design records. An enquiry or reservation can reference the stable unit identity and commercial state while remaining in the CRM or inventory system responsible for it. Integration contracts should define direction, timing, conflict handling and what happens when either system is unavailable.
The UAE Government’s data-protection overview notes obligations around personal-data processing. A floor-plan dataset is not automatically personal data, but linked buyer, owner or employee records can be. Keep identity data out of geometry exports and provide only the fields each role and system needs. Review the final design against current law and organisational policy.
Choose one representative plan containing enough complexity to expose the real work: repeated and unique spaces, openings, ambiguous annotations, several unit types and at least one revision. Define the intended output and data contract, perform the extraction, record every exception, validate the result and generate one downstream artifact. The exception log is often more valuable than the polished demonstration because it shows the operating effort the full programme will require.
Measure completeness, correction rate, review time and traceability rather than only modelling speed. A fast conversion that produces unowned assumptions transfers cost into later decisions. A slower pilot that reveals missing source information may save the programme from scaling a false data model.
Axiom Forge can help a developer design this readiness slice as a product and systems engagement, while qualified construction professionals retain responsibility for engineering and issued information. Share the source formats, intended decisions, professional review process and target sales or delivery outputs through the project brief, or email hello@axiomforge.am to discuss a controlled first slice.
- Select one representative, revision-controlled plan
- Define objects, properties, relationships and provenance
- Separate extracted, inferred and calculated values
- Validate one output for one named use
- Record exceptions, correction effort and unresolved ownership
- Scale only after the operating model is understood
Discuss your project with the founder
Is a 3D model created from a floor plan ready for construction?
Not by default. Construction use requires appropriate source information, defined precision, applicable rules, qualified professional validation and controlled issue status. A visualization or product prototype must never imply those conditions without evidence.
Does exporting IFC guarantee interoperability?
No. IFC provides a standardized data model and exchange format, but the parties still need an agreed exchange requirement, supported model view, required objects and properties, validation rules and tested software workflow.
Can the same structured data support a sales selector and estimates?
They can share stable project and object identities, but each output needs its own approved properties, derivation rules and validation gate. Sales approval does not equal quantity or engineering approval.
What should a developer send Axiom Forge for a readiness review?
Send one representative plan set, its revision history, the target outputs, current inventory or delivery systems and the roles that approve each use through the Axiom Forge brief. You can also email hello@axiomforge.am. Sensitive material should only be shared through an agreed protected channel.
